48MHz Integrated Circuit Chip 32Bit ATSAMC21E18A-MUT ARM Microcontroller IC

Integrated Circuit Chip ATSAMC21E18A-MUT 48MHz 32Bit Single Core ARM Microcontrollers IC

Description

ATSAMC21E18A-MUT is ARM® Cortex®-M0+ SAM C21, Functional Safety (FuSa) Microcontroller IC 32-Bit Single-Core 48MHz 256KB (256K x 8) FLASH 32-VQFN (5x5)

Product Attributes

Features

Operating Conditions

• 2.7V – 5.5V
• -40°C to +125°C, DC to 48 MHz
• -40°C to +85°C, DC to 64 MHz

Core

• Arm® Cortex®-M0+ CPU running at up to 48 MHz or 64 MHz:
• Single-cycle hardware multiplier
• Micro Trace Buffer
• Memory Protection Unit (MPU)

Memories

• 32/64/128/256 KB in-system self-programmable Flash
• 1/2/4/8 KB independent self-programmable Flash for EEPROM emulation
• 4/8/16/32 KB SRAM main memory

System

• Power-on Reset (POR) and Brown-out Detection (BOD)
• Internal and external clock options with 48 MHz to 96 MHz Fractional Digital Phase Locked Loop (FDPLL96M)
• External Interrupt Controller (EIC) (Interrupt pin debouncing is only available in SAM C20/C21 N)
• 16 external interrupts
• Hardware debouncing (only available in SAM C20/C21 N)
• One non-maskable interrupt
• Two-pin Serial Wire Debug (SWD) programming, test, and debugging interface

Low-Power

• Idle and Standby Sleep modes
• SleepWalking peripherals

Peripherals

• Hardware Divide and Square Root Accelerator (DIVAS)
• 12-channel Direct Memory Access Controller (DMAC)
• 12-channel Event System
• Up to eight 16-bit Timer/Counters (TC)

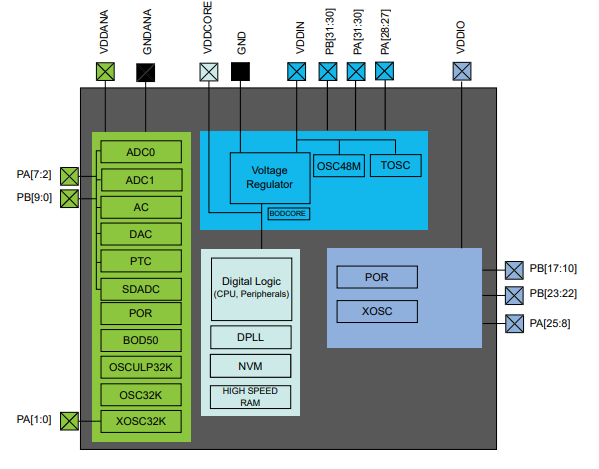

Power Domain Overview
