Automobile Chips TLV73312PQDRVRQ1 300mA Low Dropout (LDO) Linear Regulator
Product Description Of TLV73312PQDRVRQ1
The TLV73312PQDRVRQ1 is low dropout (LDO) linear regulators are ultra-small, low quiescent current LDOs that can source 300 mA with good line and load transient performance. These devices provide a typical accuracy of 1%.
Specification Of TLV73312PQDRVRQ1
| Number of Regulators | |
| Voltage - Input (Max) | |
| Voltage - Output (Min/Fixed) | |
| Voltage Dropout (Max) | |
| Current - Output | 300mA |
| Current - Quiescent (Iq) | |
| PSRR | 68dB ~ 28dB (100Hz ~ 100kHz) |
| Control Features | |
| Protection Features | Current Limit, Thermal Shutdown, UVLO |
| Operating Temperature | |
Features Of TLV73312PQDRVRQ1
-
AEC-Q100 qualified for automotive applications:Temperature grade 1: –40°C to 125°C, TA
-
Device junction temperature range:-40°C to 150°C
-
Input voltage range: 1.4 V to 5.5 V
-
Stable operation with or without capacitors
-
Foldback overcurrent protection
-
Very low dropout: 125 mV at 300 mA (3.3 VOUT)
-
Accuracy: 1% typical, 1.4% maximum
-
Low IQ: 34 µA
-
Available in fixed-output voltages:1.0 V to 3.3 V
-
High PSRR: 50 dB at 1 kHz
-
Active output discharge
Applications Of TLV73312PQDRVRQ1
- Camera modules
- Automotive infotainment
- Navigation systems

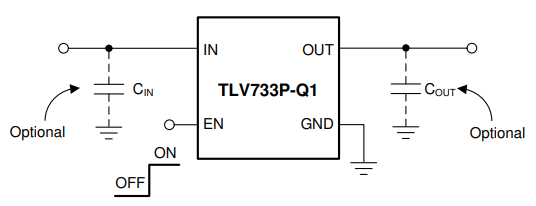

Typical Application Circuit Of TLV73312PQDRVRQ1
